Options: (See descriptions below)
- Rear Toe Links: Part # (SPL RTA F8X)
- Rear Toe link Eccentric Lockout Kit: Part #: (SPL RTAEL F8X)
- Rear Toe Links w/ Eccentric Lockout Kit: Part # (SPL ELT F8X)

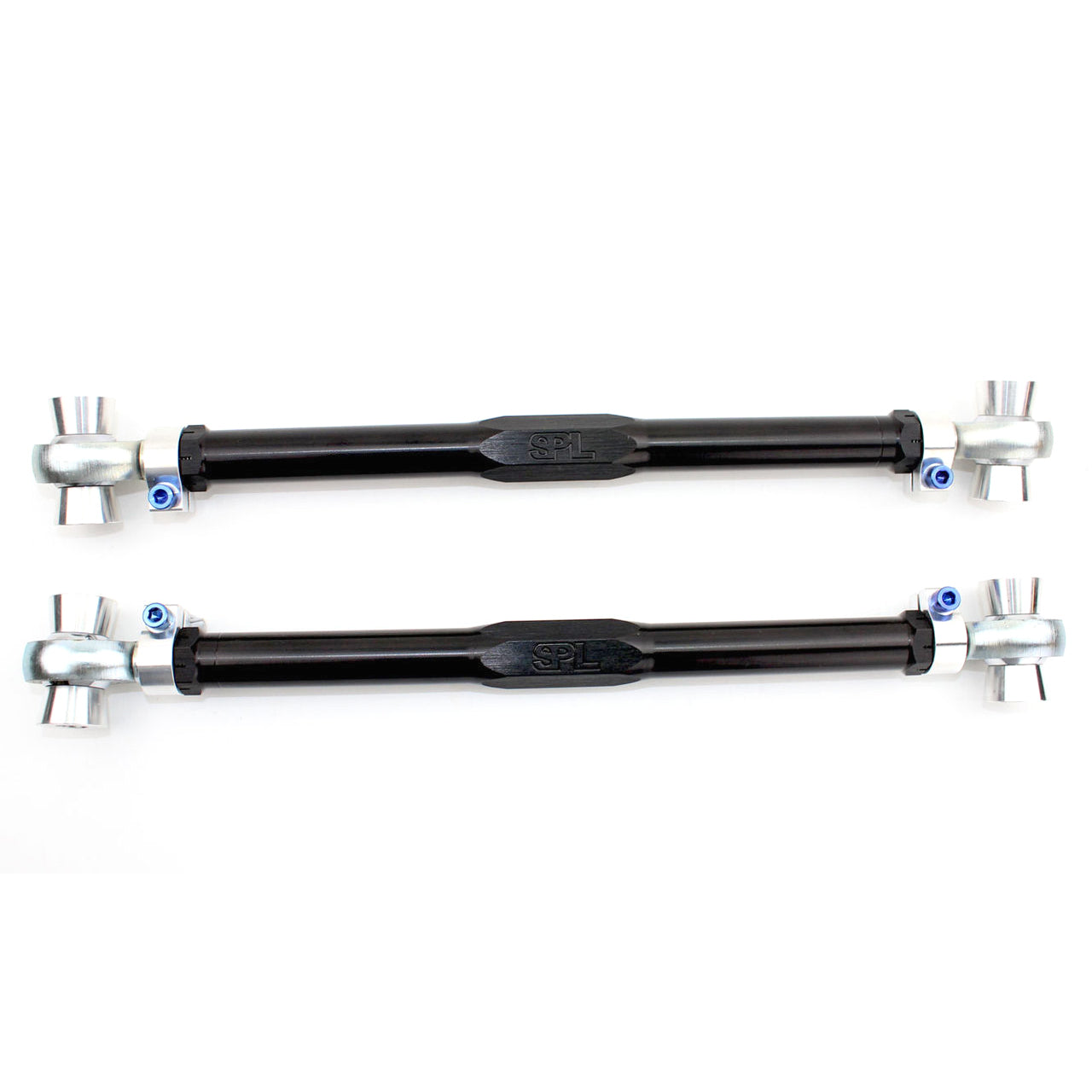

Rear Toe Links: Part # (SPL RTA F8X)
BMW F8X Rear Toe Arms (RTA) for BMW F8X increase stability and response by eliminating bushing deflection while providing an increased range of rear toe adjustment, necessary for lowered cars or for performance alignments. Even small changes to ride height and camber will affect toe settings, and the wide range of adjustment allows you to maximize grip on a track car and extend tire life on a street car. The factory rear toe arms utilize an eccentric bolt and washer for adjustment and lack the precision and range that SPL Parts rear toe links offer. Black Anodized and gun drilled 2024 Aluminum main links along with our 360 degree Rotating Clamp design allow for quick and precise adjustment. The Rotating Clamps are tightened with Blue Anodized Titanium Socket Head Cap Screws for easy to access adjustment, and shaves even more unsprung weight, without compromising strength.
FK Spherical Bearings and Rod Ends are manufactured in Connecticut and utilize a Teflon liner to provide quiet operation, lower friction, smooth articulation, and eliminates bushing deflection under load. The liner is also self-lubricating and self-cleaning, offering robust reliability for street and track use. The PTFE liner is chemically bonded to the inner diameter of the race, and offers a very high load carrying capacity that has greatly increased dynamic wear characteristics. The operating temperature of the liner ranges from -65º to 325ºF, offering robust reliability.
Rear Toe link Eccentric Lockout Kit: Part #: (SPL RTAEL F8X)
The stock eccentric bolts provided by BMW for small toe adjustments tend to slip under high cornering loads, causing changes to the rear alignment. Our SPL Parts Eccentric Lockout Toe Arm (ELT) kit eliminate the stock eccentric bolts to keep your rear alignment where you set it. You must have adjustable control arms in order to adjust toe after eliminating the stock eccentric bolts. Our lockout plates are CNC machined from 6061-T6 Aluminum and supplied with CAD plated grade 10.9 hardware for absolutely zero-slip. One kit includes washers and bolts for both toe arms.
Rear Toe Links w/ Eccentric Lockout Kit: Part # (SPL ELT F8X)
The combination of Rear Toe Links: Part # (SPL RTA F8X) and Rear Toe link Eccentric Lockout Kit: Part #: (SPL RTAEL F8X) together.
