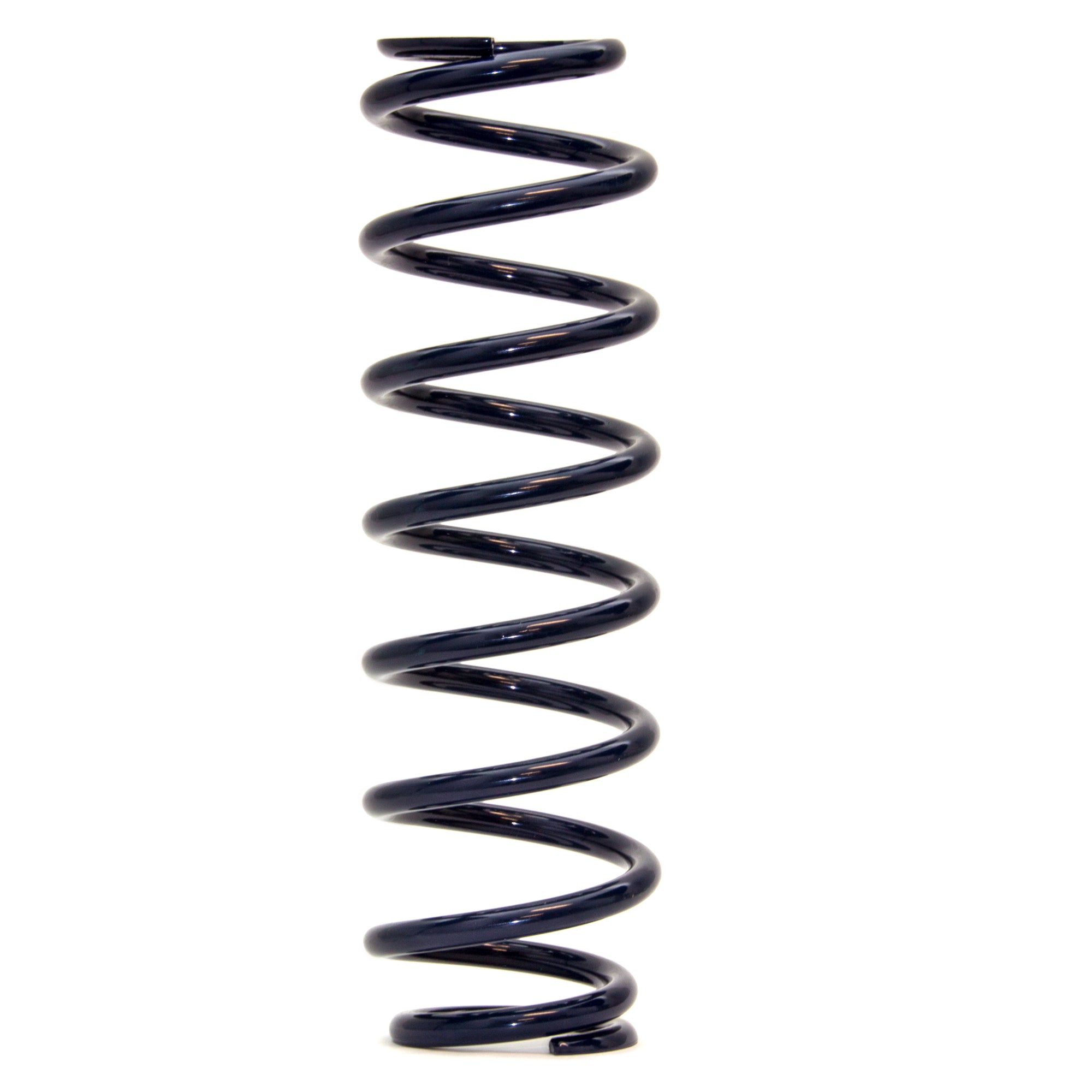

Hyperco Coil-Over Springs are high-performance, aftermarket suspension springs primarily used in Motorsports and Motor Racing. Hyperco’s coil-over springs, also known as Hypercoils™, offer a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system that will permit an optimized damper or spring assembly to control a wide range of wheel travel.
Options:
These springs have a 2.5 inch top and bottom coil to fit 2.5 inch spring perches. They have been confirmed to fit Ohlins Road and Track 65mm spring perches.
- 110 lbs/in: 1812B0100,
- 125 lbs/in: 1812B0125,
- 150 lbs/in: 1812B0150,
- 162 lbs/in: 1812B0162,
- 175 lbs/in: 1812B0175,
- 185 lbs/in: 1812B0185,
- 200 lbs/in: 1812B0200,
- 225 lbs/in: 1812B0225,
- 250 lbs/in: 1812B0250,
- 275 lbs/in: 1812B0275,
- 300 lbs/in: 1812B0300,
- 325 lbs/in: 1812B0325,
- 350 lbs/in: 1812B0350,
- 375 lbs/in: 1812B0375,
- 400 lbs/in: 1812B0400,
- 425 lbs/in: 1812B0425,
- 450 lbs/in: 1812B0450,
- 475 lbs/in: 1812B0475,
- 500 lbs/in: 1812B0500,
- 550 lbs/in: 1812B0550,
- 600 lbs/in: 1812B0600,
- 650 lbs/in: 1812B0650,
- 700 lbs/in: 1812B0700,
- 750 lbs/in: 1812B0750,
- 800 lbs/in: 1812B0800,
- 850 lbs/in: 1812B0850,
- 950 lbs/in: 1812B0950,
Optimum Body Diameter (OBD)
Optimum Body Diameter is the standard spring design for Hyperco coil-over springs. Featuring a unique design concept that adjusts the body diameter of the spring relative to the end coils, an OBD spring enables Hyperco to take full advantage of our ultra-high tensile spring materials by optimizing the applied stress through adjusting the spring’s body diameter.
Key Benefits of Hypercoils OBD Coil-Over Springs
- More usable deflection
- Less weight than standard suspension springs
- 2% rate linearity tolerance from 20% to 60% of deflection
- 4% rate linearity tolerance from 61% to 80% of deflection
- More resistant to bowing than competitor’s springs
- Designed to fit all standard hardware
- Maintain free length and rate throughout a near infinite operational life
- Material: High tensile chrome silicone
- Finish: Hyperco dark blue powder coat
Coil Over Spring Details
These springs have a 2.5 inch top and bottom coil to fit 2.5 inch spring perches. They have been confirmed to fit Ohlins Road and Track 65mm spring perches.
