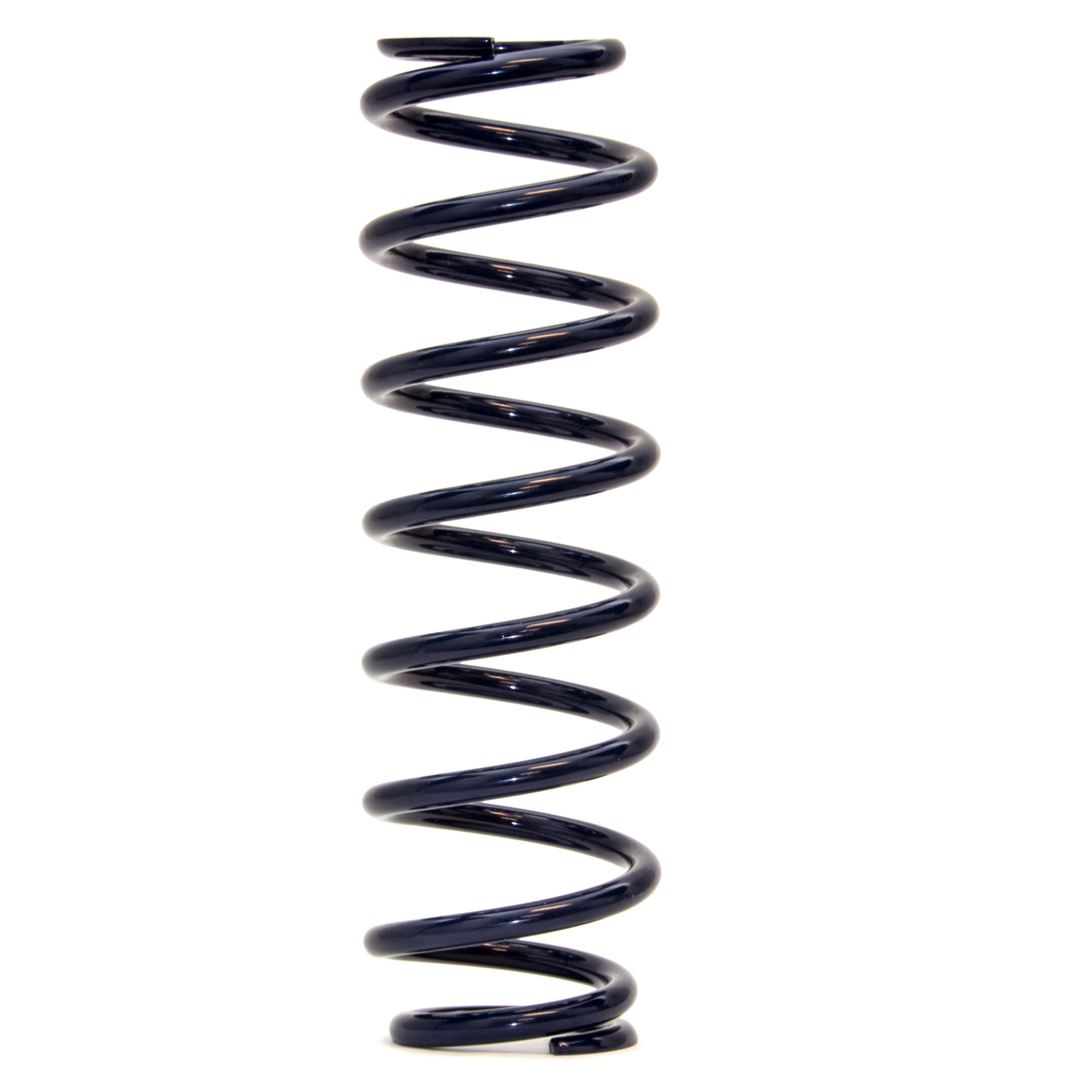

Hyperco Coil-Over Springs are high-performance, aftermarket suspension springs primarily used in Motorsports and Motor Racing. Hyperco’s coil-over springs, also known as Hypercoils™, offer a wide range of free lengths and rates which provide the suspension designer latitude in creating a motion ratio for the suspension system that will permit an optimized damper or spring assembly to control a wide range of wheel travel.
Options: ID: 2.25" Length: 4"
These springs have a 2.25 inch top and bottom coil to fit 2.25 inch spring perches.
- 400 lb/in - 184A0400
- 450 lb/in - 184A0450
- 500 lb/in - 184A0500
- 600 lb/in - 184A0600
- 650 lb/in - 184A0650
- 700 lb/in - 184A0700
- 800 lb/in - 184A0800
- 850 lb/in - 184A0850
- 900 lb/in - 184A0900
- 1000 lb/in - 184A1000
- 1050 lb/in - 184A1050
- 1100 lb/in - 184A1100
- 1150 lb/in - 184A1150
- 1200 lb/in - 184A1200
- 1250 lb/in - 184A1250
- 1300 lb/in - 184A1300
- 1350 lb/in - 184A1350
- 1400 lb/in - 184A1400
- 1500 lb/in - 184A1500
- 1600 lb/in - 184A1600
- 1700 lb/in - 184A1700
- 1900 lb/in - 184A1900
- 2200 lb/in - 184A2200
Optimum Body Diameter (OBD)
Optimum Body Diameter is the standard spring design for Hyperco coil-over springs. Featuring a unique design concept that adjusts the body diameter of the spring relative to the end coils, an OBD spring enables Hyperco to take full advantage of our ultra-high tensile spring materials by optimizing the applied stress through adjusting the spring’s body diameter.
Key Benefits of Hypercoils OBD Coil-Over Springs
- More usable deflection
- Less weight than standard suspension springs
- 2% rate linearity tolerance from 20% to 60% of deflection
- 4% rate linearity tolerance from 61% to 80% of deflection
- More resistant to bowing than competitor’s springs
- Designed to fit all standard hardware
- Maintain free length and rate throughout a near infinite operational life
- Material: High tensile chrome silicone
- Finish: Hyperco dark blue powder coat
Coil Over Spring Details
