Why Buy Your Öhlins From 3DM Suspension?
We are North Americas #1 Öhlins expert. Our expertise means you get the best Öhlins product, fitment, and in-depth support for your application. We don't just sell Öhlins suspension products, we service, upgrade, and develop them as well.
- (2015-2021) BMW M2, Comp, CS (F87)
Specifications
Contact 3DM to discuss how we can help match Öhlins DFV dampers to your existing mounts and springs.

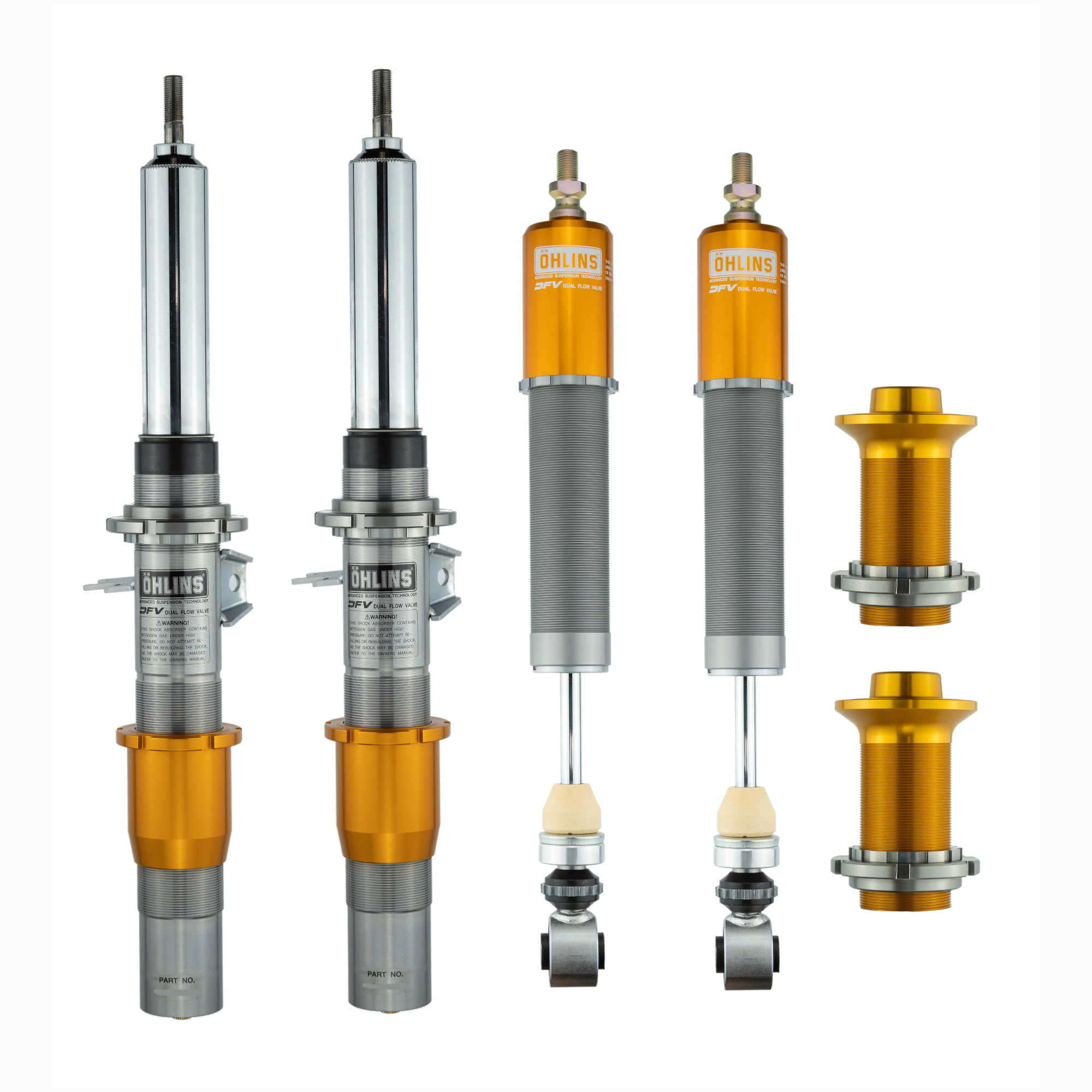

Front Damper
- DFV strut
- Valving spring range: 60 N/mm to 110 N/mm springs
- Dust boot
- 65mm lower perch and lock ring
- 65mm upper perch adapter to mate with OEM mount
- ARB adapter washer
Rear Damper
- DFV shock
- Valving spring range: 180 N/mm to 230 N/mm springs
- Dust boot
- Divorced spring height adjuster with 65mm perch and lock ring
Options (Sold Separately)
Alternatively, we can create a complete kit with new mounts and springs that is ready to bolt up to your vehicle out of the box. Options include, but are not limited to the following:
- Custom valving to pair with spring rates of your choice
- Front strut adjustable camber plates
- OE front strut mounts
- Rear spherical bearing shock mounts
- OE rear shock mounts
-
Öhlins spring packages
- Swift spring packages
- Swift spring thrust sheets
- Swift spring bags for the ultimate in shock shaft and shaft seal protection
Öhlins DFV Technology
Öhlins DFV (Dual Flow Valve) technology is a groundbreaking innovation in the world of suspension systems. It is a high-performance damping system designed to provide unparalleled control and comfort in a wide range of driving conditions. The DFV technology utilizes a unique and patented valve design that allows for very precise control of the damping forces in the shock absorber speed range that is most critical for handling, traction, and comfort. Utilizing the DFV technology greatly reduces the compromise between handling and comfort that is normally associated with a common single tube damper. The compression and rebound side are tuned individually. Whether on the racetrack or the street, this technology delivers exceptional performance and a smoother ride.
HIGHLIGHTED FEATURES:
- Patented Dual Flow Valve
- Track-focused Tuning
- Height Adjustable
- 20 Clicks of Adjustable Damping
- Monotube Design
- Rebuildable
- Off-road Use Only
