Pricing is qty 1 (each)

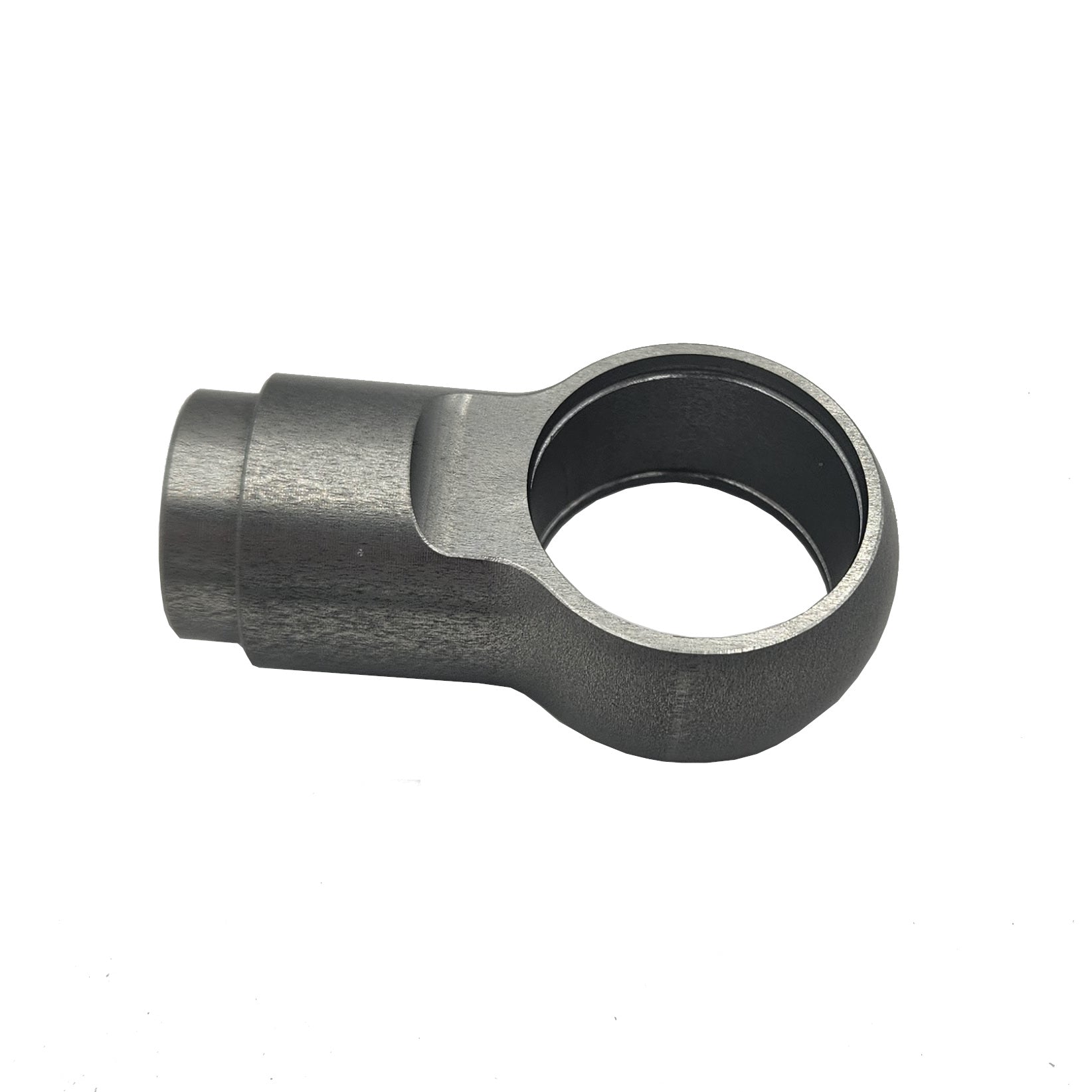

These are eyelets for the piston shaft side of TTX36 dampers. They hold the larger 14mm metric bearing. Use in conjunction with circlip 00577-01 and dust seal 00534-01.
Options: 10037-XX (Measured from base to center of bearing)
- 40mm: 21069-04
- 46mm: 21069-06
- 49mm: 21069-05
- 57mm: 21069-03
- 93mm: 21069-01
- 100mm: 21069-02
Notes
When configuring a total damper length, you must subtract 18mm from the above specifications for overall length. The piston shaft threads 18mm into these End Eyes.
Total damper length = Core damper length + Top Eye Length + (End Eye length - 18mm)
